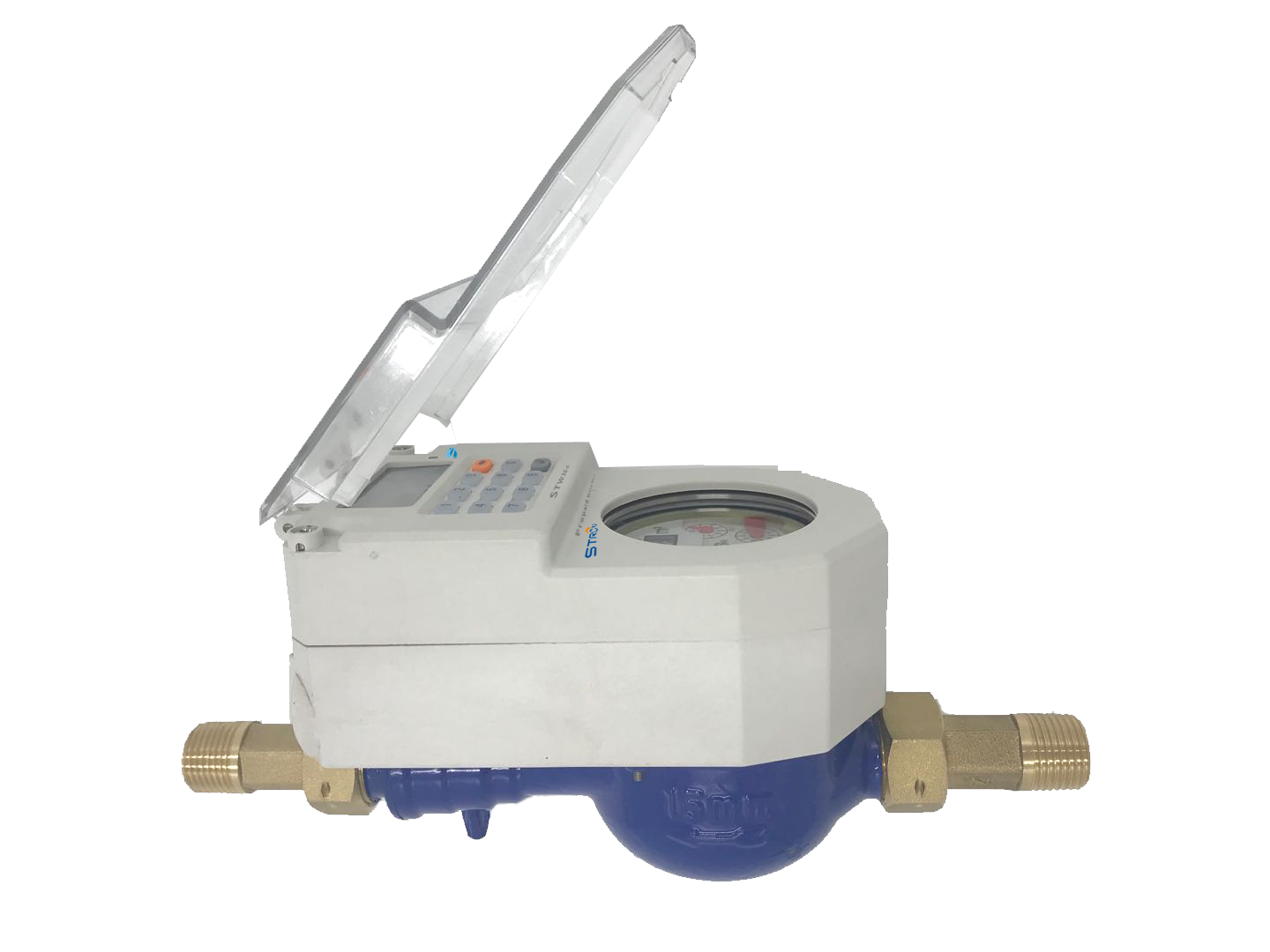

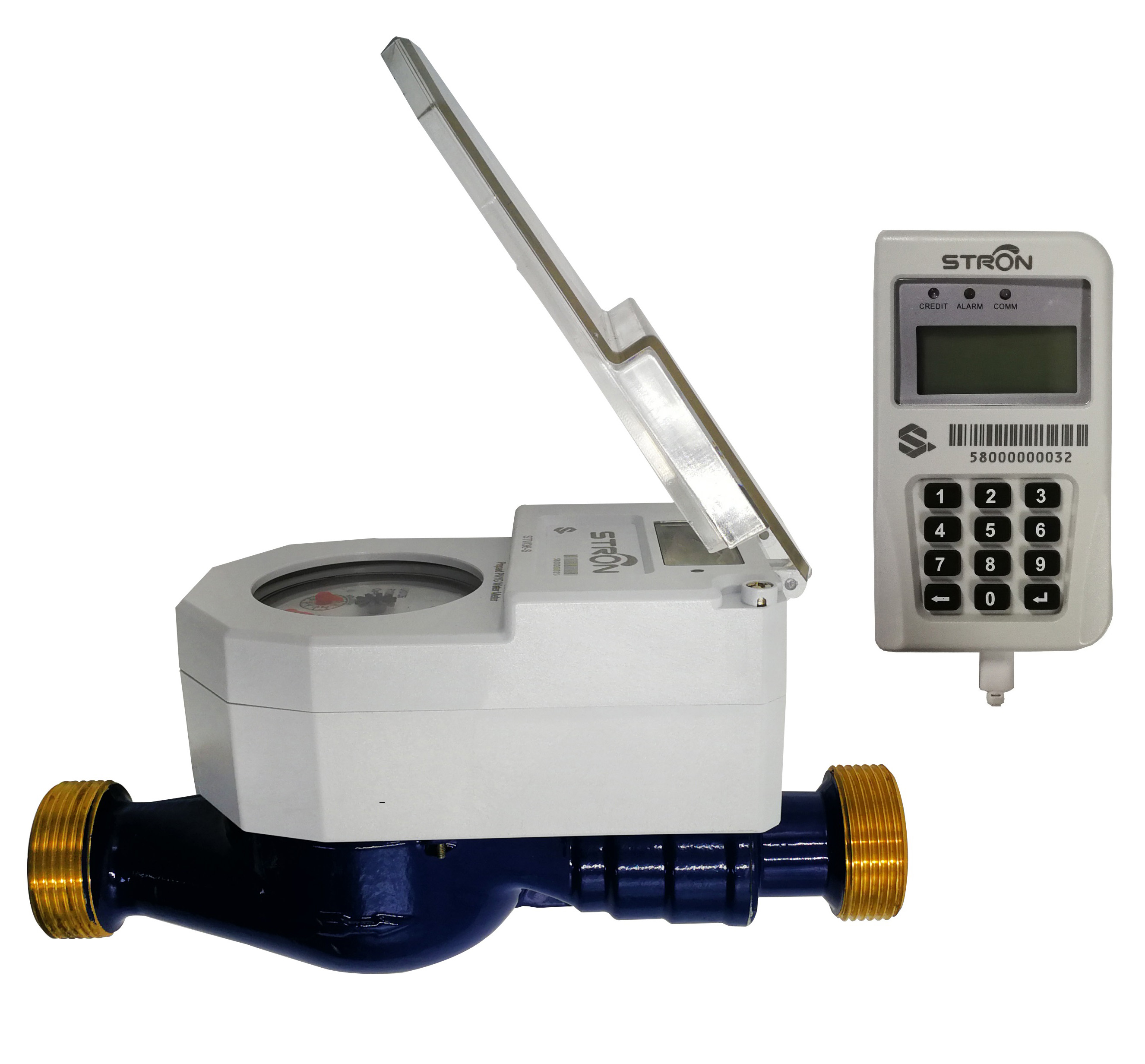

STS 16Bar R160 Prepaid Water Meter With split Keypad CIU

Brand Name : Stron

Model Number : STW36-C

Certification : STS

Place of Origin : Hunan

MOQ : 50pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000pcs per Month

Delivery Time : 14 work days

Packaging Details : carton 255*145*125mm

Base Meter Material : Brass

Type : Split Type

Class : C

Q3/Q1 : 160

Billing : Prepayment

Billing System : Online Vending System

Weight : 1.5kg

Size : Various

Contact Now

STS Certified Water Meter Perpayment Multi-jet R160 Split Type with Keypad CIU

With high accuracy, STW36-C is an STS Standard compliant, split keypad type, automatically valve controlled prepaid water meter. The integrated keypad is offered to enter recharge TOKEN and check information by short codes. Stronpay water vending software could be integrated to local Mobile Money Payment Platform like M-PESA, Alipay, MTN, Airtel, etc. So users can top up PAYG water by mobile money without leaving the house. Pay as you go function and excellent anti-tamper feature like Magnetic field protection to help utilities for Revenue water protection and consumer management.

Size DN15mm 1/2” DN20mm 3/4” DN25mm 1”
Overload flow rate Q4 3.125 5.0 7.875
Permanent l flow rate Q3 2.5 4.0 6.3
Transitional flow rate Q2 0.025 0.040 0.063
Minimum flow rate Q1 0.0156 0.025 0.0393
Ratio ”R” Q3/Q1 160 160 160
Maximum working pressure 16Bar 16Bar 16Bar
Maximum pressure loss 0.6Bar 0.6Bar 0.6Bar
Maximum reading 99999 99999 99999
Max temperature 50℃ 50℃ 50℃
Error Q1≦Q≦Q2 5% 5% 5%
Q2≦Q≦Q4 2% 2% 2%

Meter Dimensions

Size DN15 1/2” DN20 3/4” DN25 1”
Length (L) 165/190 190 225/260
Width (W) 99 99 103
Height (H) 104 106 114

Connecting

Thread

 G3/4B G1B G1-1/4B
